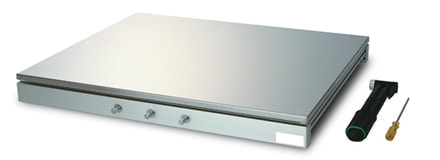

UAX-0405AS / UMX-0405AS
Vibration-isolating table for research dip coating. Specifications to match the size of our equipment.
It is essential for smoother and thicker film formation, excluding vibration around it when operating at very low speeds.
- The frequency band is optimized for vibration isolation of our dip coaters.
- The mounting panel is made of stainless steel, so it can be installed in a clean room.
- The 3-dimensional air spring is used to provide performance equivalent to that of a large vibration-isolation table.
|Natural Vibration Frequency||Vertical 1.5～2.5Hz 、Horizontal 3.0～3.8Hz
|Vibration Isolation Method||Three-dimensional air spring for all directions
|Horizontal maintenance method||Automatic by mechanical valve（Air supply pressure0.25～0.5MPa）||Manual type by hand-pump|
|Stage||SUS stainless steel|
|Possible weight of the load||100kg|
|Overall dimensions（mm）||W540 D440 H57||W540 D460 H57|
|Weight of Main body||23kg|
|Standard accessories||φ6mm5mTube・One-touch joint PT1/4 male screw||Hand pump・Screwdriver|
|Option||Centralized exhaust system, Compressor||None|
